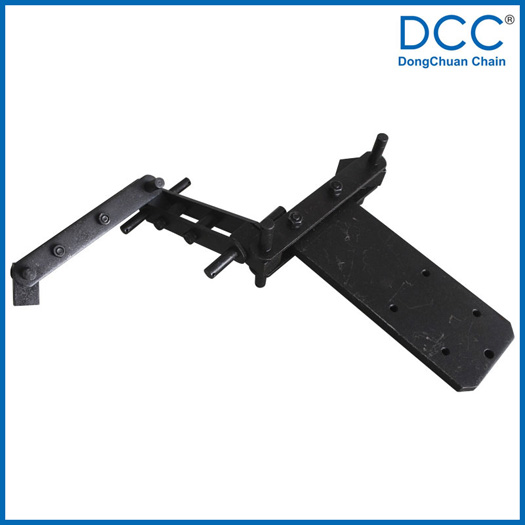

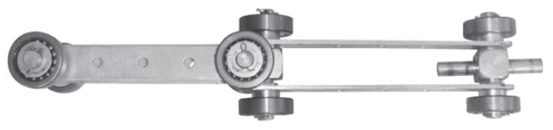

雙鉸接鏈條由一節十字節和鏈條相連，鏈條能360°內任意轉動，可以使用十字軌道和圓形軌道，鏈輪的橫縱面都有專用的軸承支撐，使鏈條運行時更平穩，在鏈條的底部裝有吊具板，可以根據不同的使用要求設計。鏈條的零件為中碳鋼，經熱處理后使用，對部分有腐蝕的環境，在鏈條的表面進行了發黑處理。
雙鉸接鏈適用領域：懸掛輸送機。

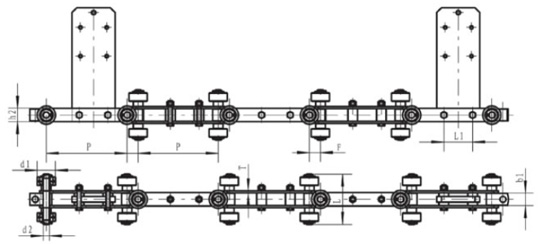

| Pitch P (mm) | Inner width of inner link b1 (mm) | Diameter of roller d1 (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Height of sidebar h2 (mm) | Thickness of sidebar T (mm) | Hole distance of attached plate L1 (mm) | Hole distance of articulated block F (mm) | Tensile strength Q (KN) |
| 190.5 | 26 | 38 | 13 | 105 | 28 | 4.5 | 60 | 23.2 | 98 |
| 203.2 | 26 | 38 | 13 | 105 | 28 | 4.5 | 60 | 23.2 | 98 |

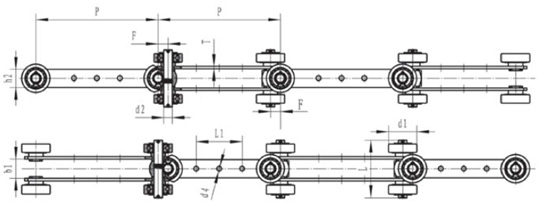

| Chain No. | Pitch P (mm) | Inner width of inner link b1 (mm) | Diameter of roller d1 (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Height of sidebar h2 (mm) | Thickness of sidebar T (mm) | Hole distance of attached plate L1 (mm) | Hole diameter of attached plate d4 (mm) | Hole distance of articulated block F (mm) | Tensile strength Q (KN) |
| 200 | 20 | 30 | 9 | 65 | 20 | 3 | 88 | 6.44 | 20 | 15 | |
| 200 | 21 | 35 | 10 | 64.5 | 20 | 4 | 88 | 6.5 | 20 | 60 | |
| 200 | 26 | 40 | 14 | 75 | 30 | 4 | 88 | 10 | 25 | 100 | |
| 203.2 | 30 | 47 | 14 | 95 | 30 | 4 | 76.2 | 8.4 | 16.5 | 50 |
